Oset lithium battery upgrade 42v 25ah for 16r and 20r models



Oset battery 36v 25Ah Lithium Upgrade with digital fast charger.

Last 3-4 longer than standard.

The only aftermarket battery that is IP65 rated.

Free app for battery monitoring. (percentage, voltage, current and power)

Manufactured in the UK.

4.55kg.

Fits 16r and 20 lite models.

Comes with a choice of connectors for your bike.

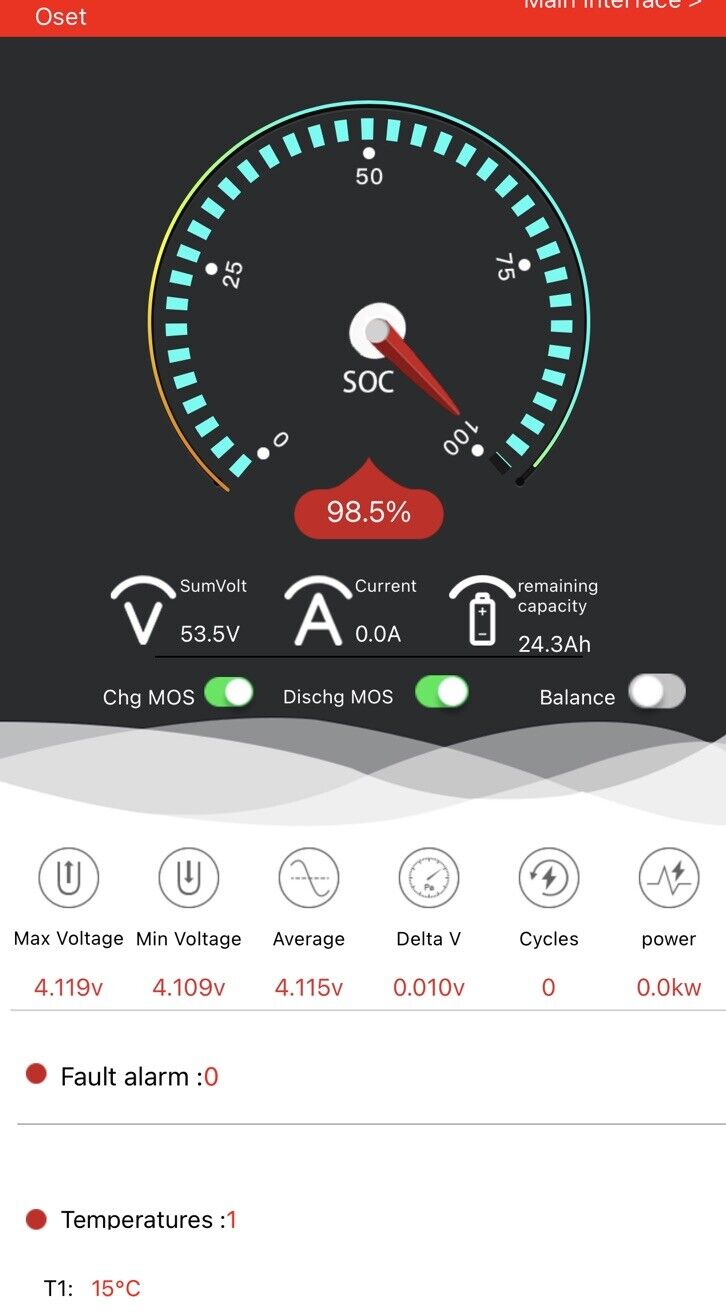

The phone app tells the user battery percentage, voltage, current draw and bikes output power. (works for around 20m distance, and can be checked simply while the user is still riding)

Lithium batteries have a very flat discharge curve, which makes the bikes standard output meter, or a volt meter inaccurate to tell battery state of charge. (SOC)

When the batteries is discharged there is a safety cutout to prevent battery damage.

See screen shots in pictures.

We also have batteries for 12.5, 20r, 24 and MX10.

Please contact us to discuss your requirements.

Over 6kg saving over lead acid batteries.

All our packs are built in the UK using a rigid case and high current battery bars spot welded to the cells.

Be aware of other batteries which are not IP rated and don’t have cell spacing which causes them to run hot.

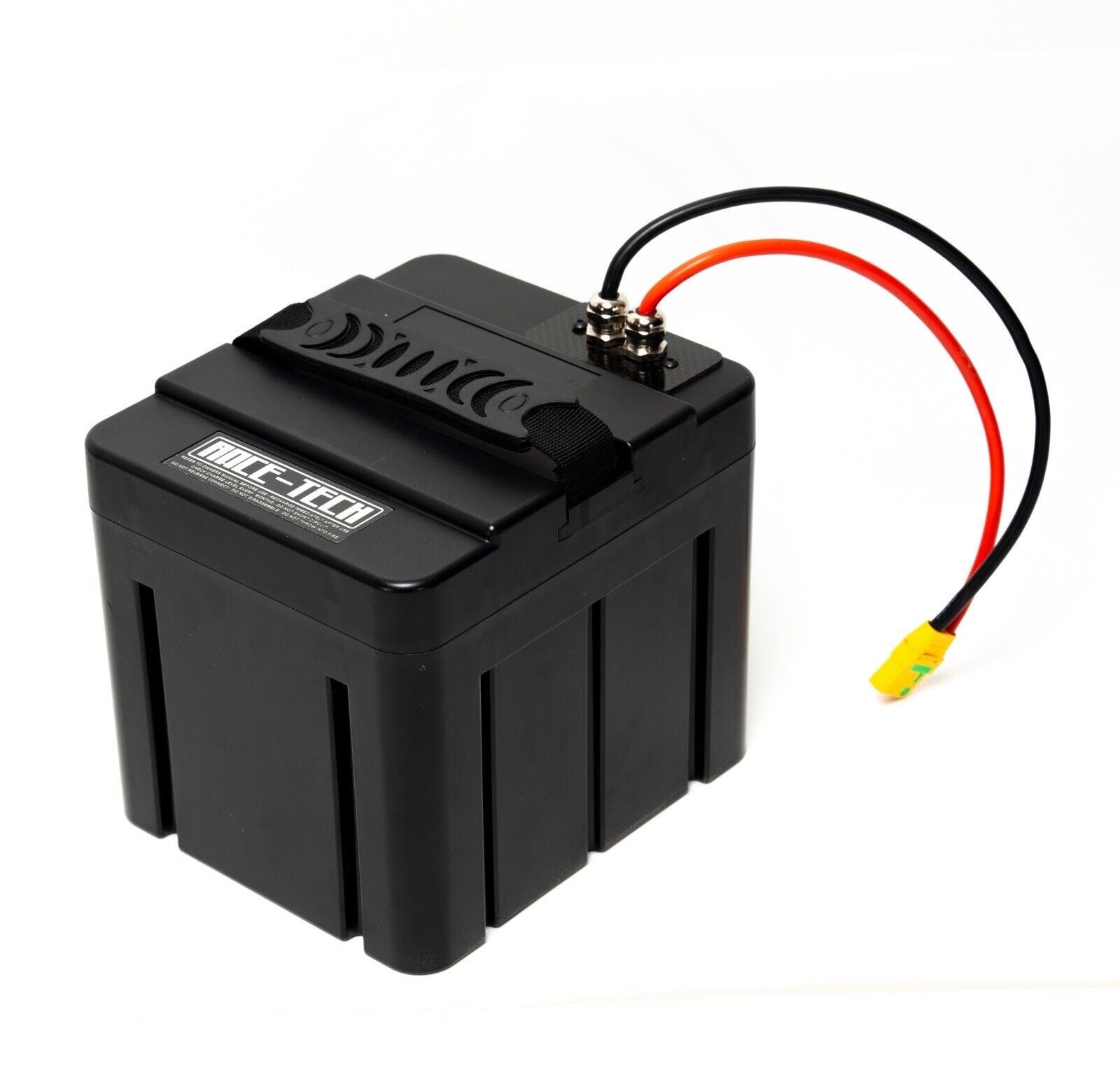

Rigid battery case to protect the battery with carry handle.

High current silicone cable.

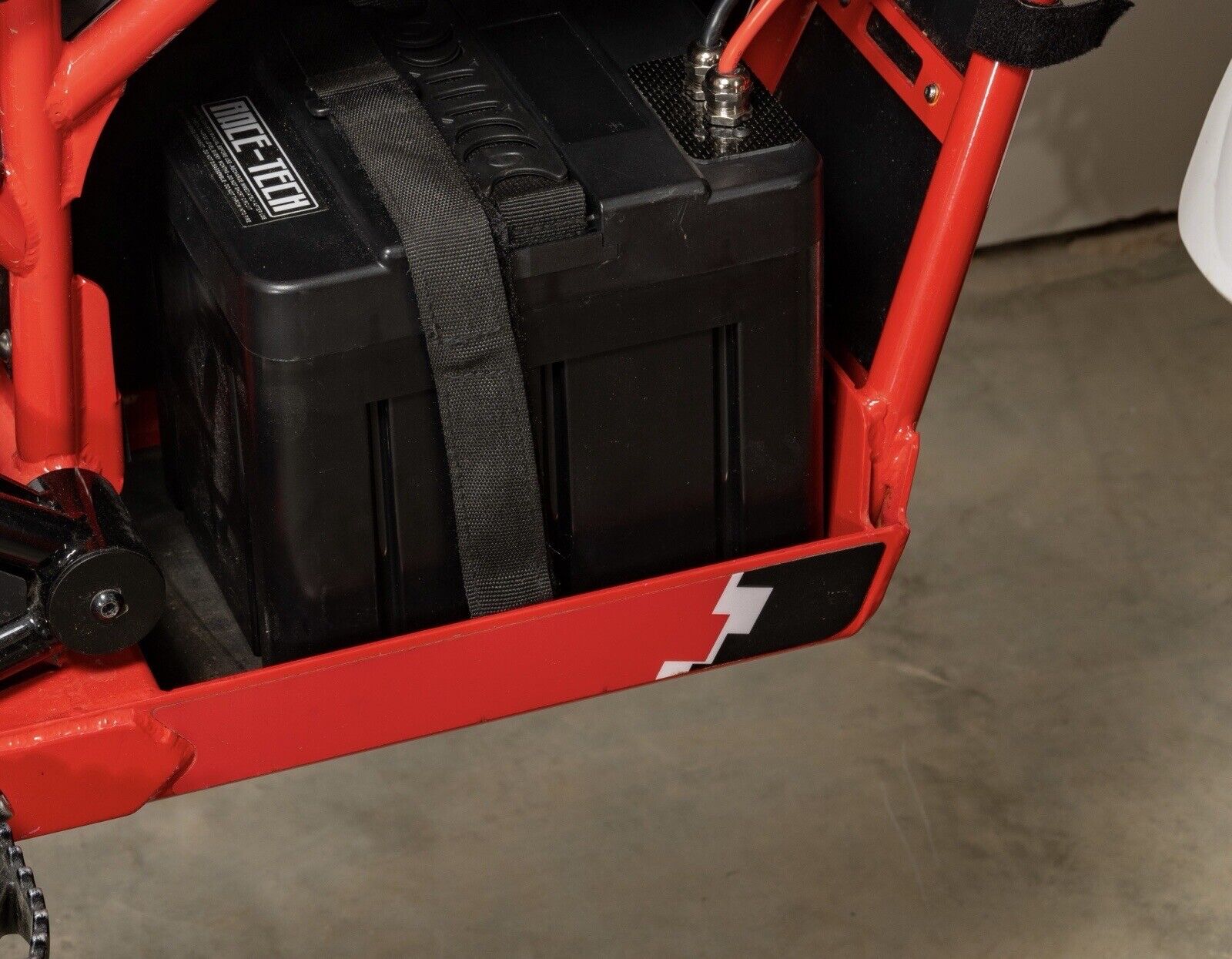

Batteries come with a Velcro strap to fasten them into the bikes. (Similar to genuine Oset battery)

All cells used are grade A genuine Samsung or LG high current cells. Anticipated life is over 1500 cycles.

Battery dimensions are 155mm x 180mm x 175mm

Cells are mounted low to keep the COG low with the BMS above.

Everything is included to convert over to lithium and full installation instructions will be included for a hassle free install.

A 2 year warranty is included. It is important the battery is recharged after use and checked every 6 months.

The IP 65 rating makes the battery fine to use in adverse weather. However it must be removed if you pressure wash the bike.

Warranties will not be honour if the battery has water damage or has been opened. Tamper proof stickers must be intact.

The battery has onboard data logging and diagnostics via a phone app.

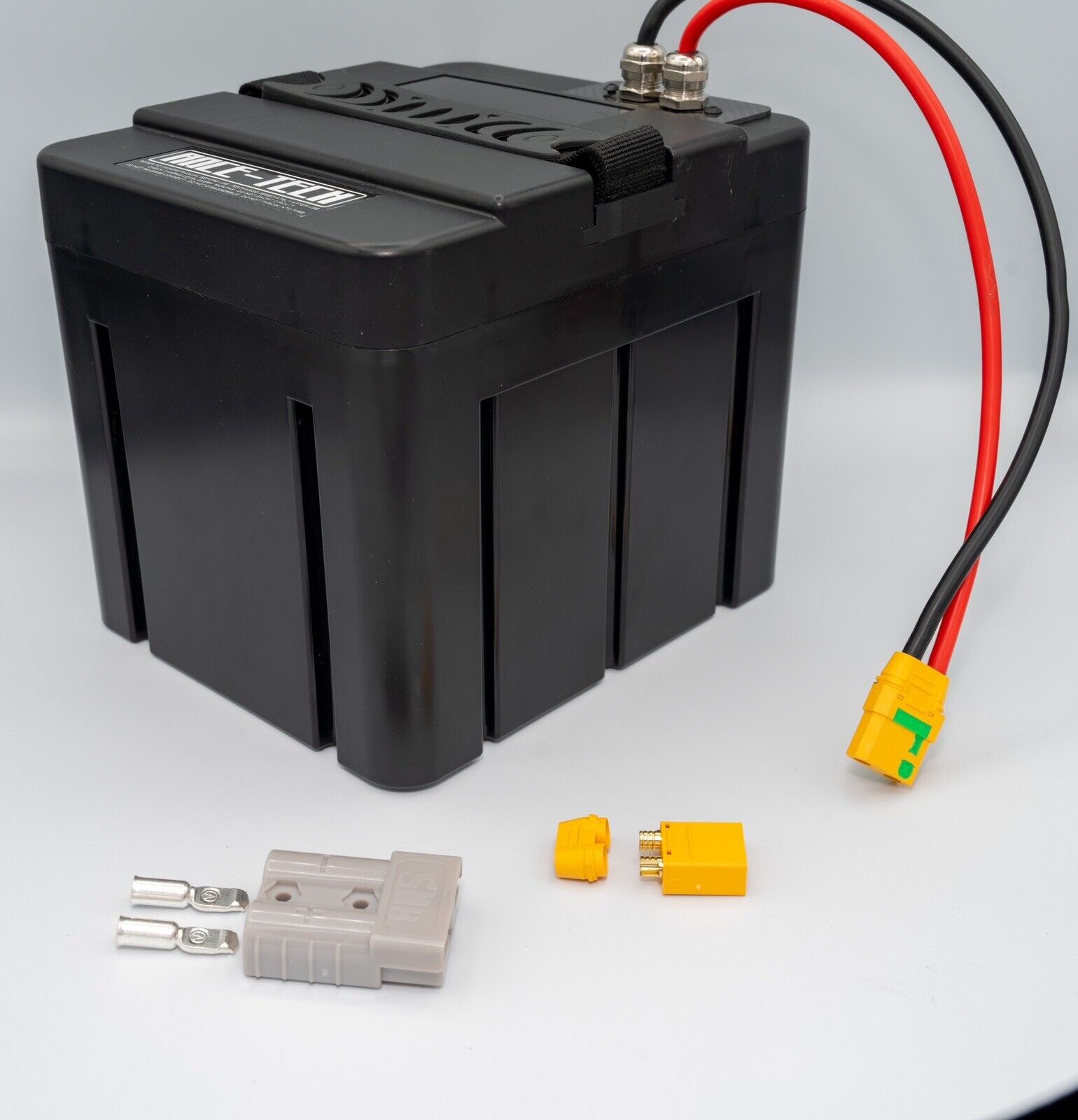

Can be supplied with XT90 anti spark high current connectors. Including pre wired connect for your bike. These are the lightest and easiest to disconnect.

Alternative we can supply with Anderson connectors.

Battery should be recharged straight after use.

It is safe to charge the battery immediately after use, it has in built temperature and current compensation.

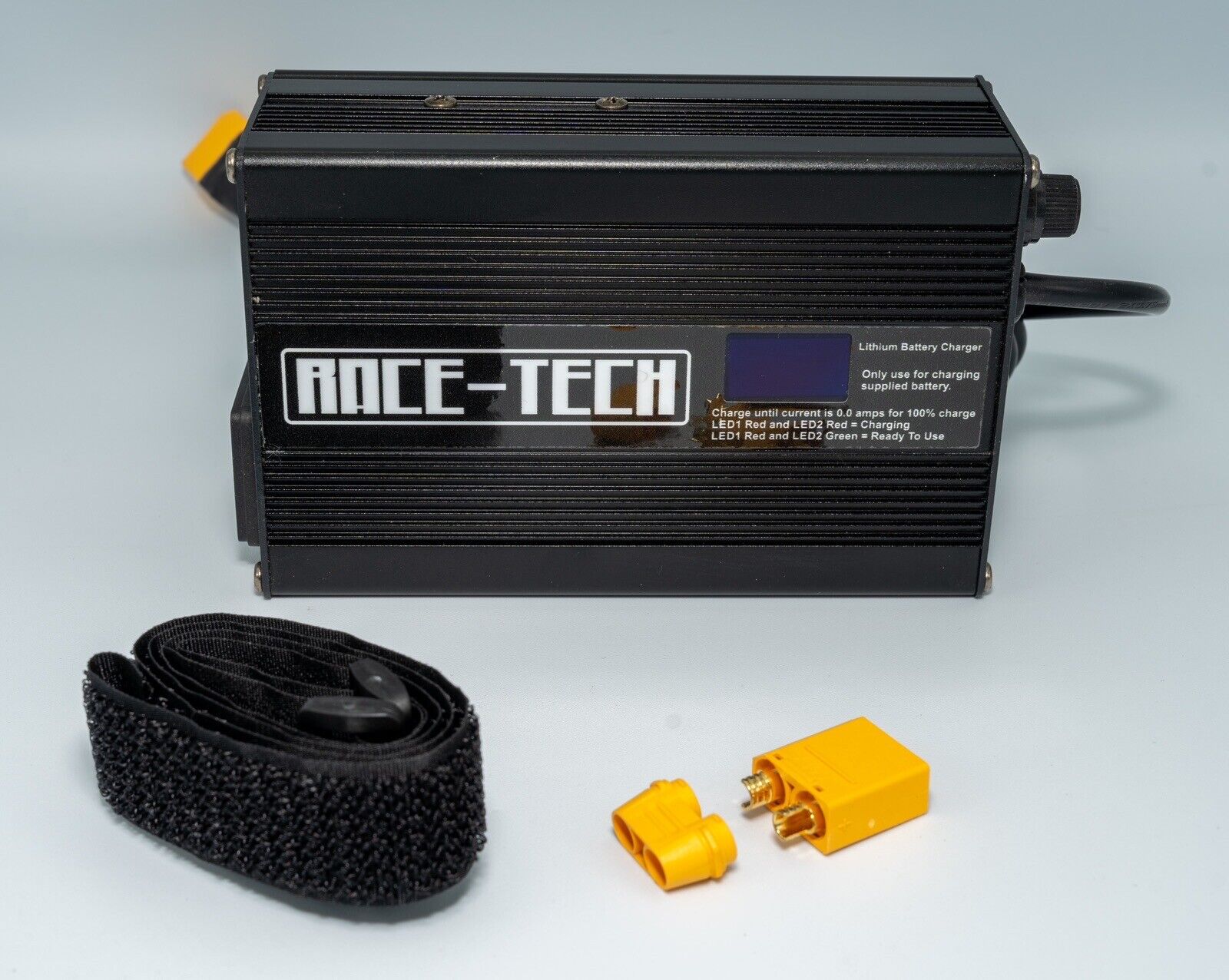

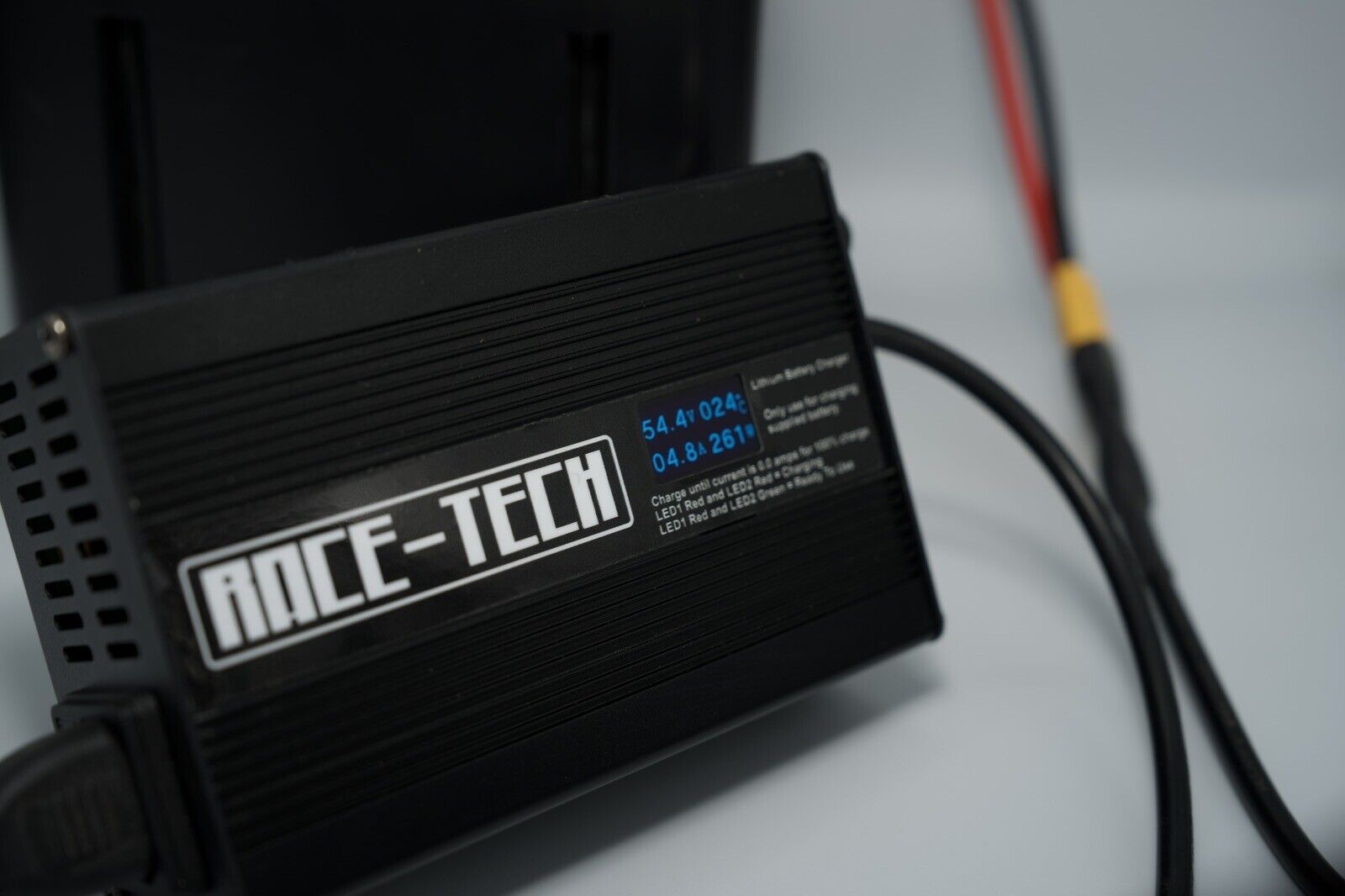

The digital charger tells the user the charge current (5a max) voltage power and temperature at a glance.

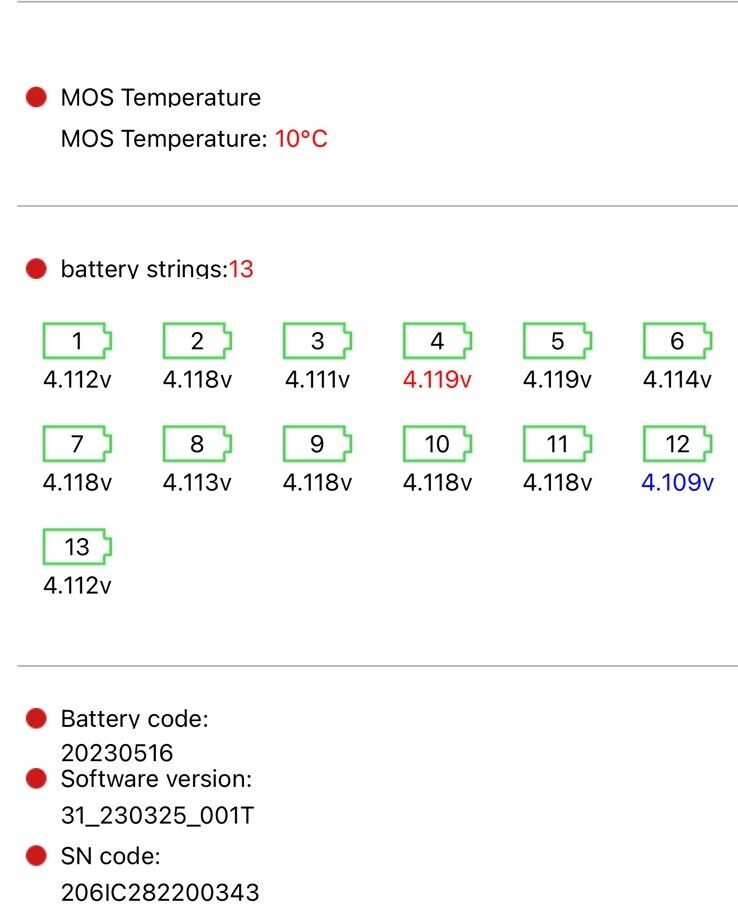

The free Bluetooth app can also be used to see exact cell data and charge information.

10-90% charge in approximately 4 hou
