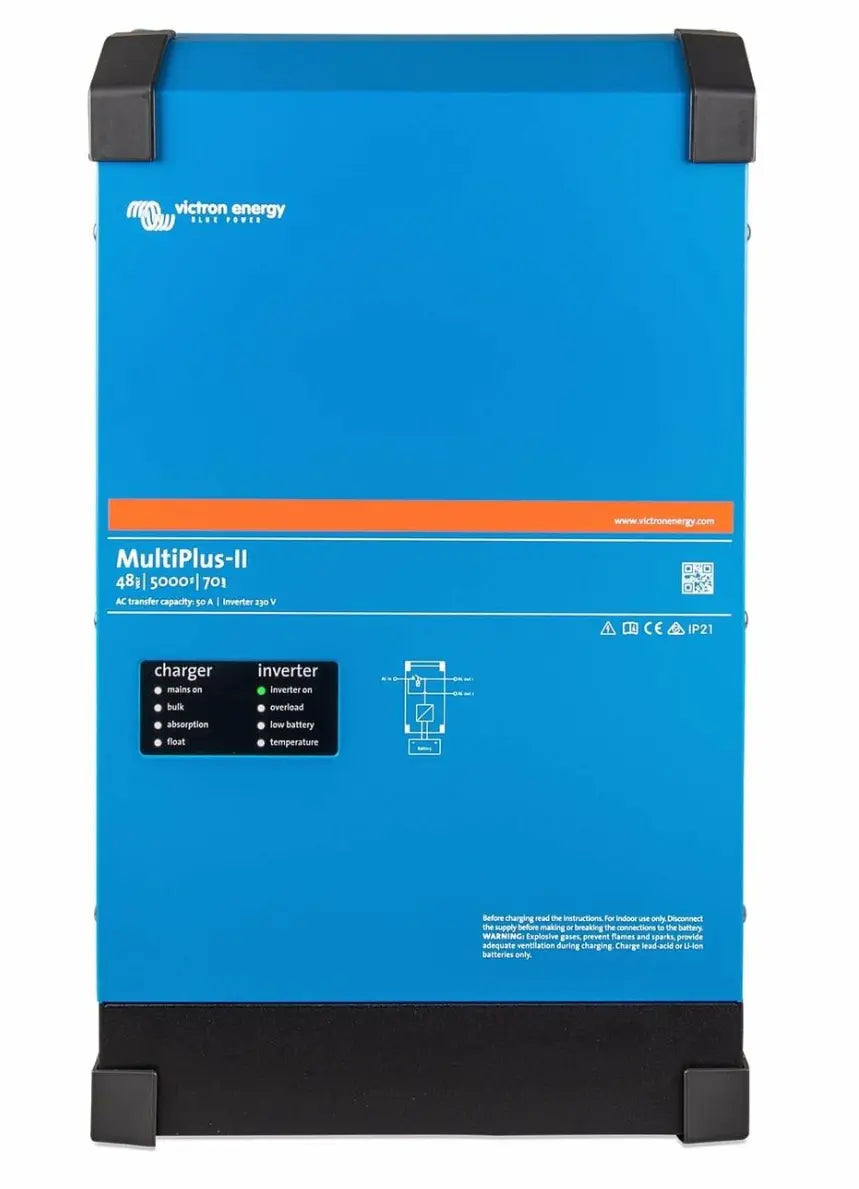

Victron Energy MultiPlus II 48V 5000 70-50 Pure Sine Inverter Charger UK Stock
Victron Energy MultiPlus II 48V 5000 70-50 Pure Sine Inverter Charger UK Stock
Uk stock. Be aware of sellers abroad because VAT will be charged as the item comes into the UK.
Victron Energy PMP482505010
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.
It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A).
It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
Note: for a short period of time this product was called MultiGrid-II.
Benefits
PowerAssistThe MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
ESS: Energy Storage SystemsThe MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.
Uninterrupted AC power (UPS function)In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less
than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and ControlMonitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, via the required Color Control GX or Venus GX, from adjusting your Multi to auto starting a back generator and more...
Technical Specification INVERTER/CHARGER PowerControl & PowerAssistYesTransfer switch50AMaximum AC input current50AINVERTER DC Input voltage range38 – 66 VOutputOutput voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%Cont. output power at 25°C5000VACont. output power at 25°C4000 WCont. output power at 40°C3700WCont. output power at 65°C3000 WMaximum apparent feed-in power4000VAPeak power9000WMaximum efficiency96%Zero load power18WZero load power in AES mode12WZero load power in Search mode2WCHARGER AC InputInput voltage range: 187-265 VAC Input frequency: 45 – 65 HzCharge voltage 'absorption'57,6 VCharge voltage 'float'55,2 VStorage mode52,8 VMaximum battery charge current70ABattery temperature sensorYesGENERAL Auxiliary outputYes (32 A)External AC current sensor (optional)100 AProgrammable relayYesProtectionOutput short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on inverter output, input voltage ripple too highVE.Bus communication portFor parallel and three phase operation, remote monitoring and system integrationGeneral purpose com. portYes, 2xRemote on-offYesOperating temp. range-40 to +65°C (fan assisted cooling)Humidity (non-condensing)Max 95%Protection categoryIP22Height 565 mmWidth323 mmDepth148 mmWeight29 KgWarranty5 Years
